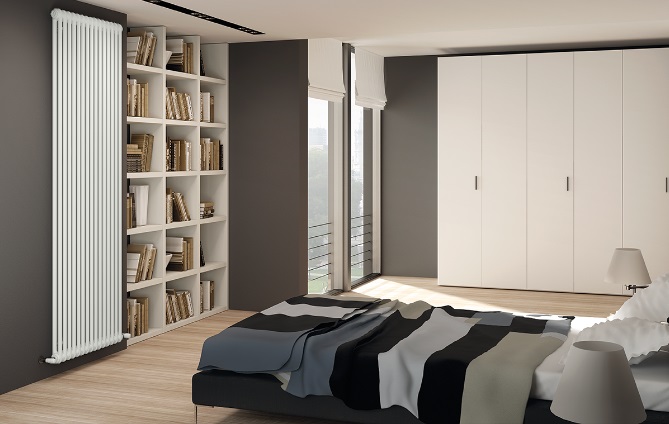

IRSAP steel tubular radiator series Tesi 2 with height 1800mm colour White Standard on Grim Network
TESI radiators represent the most functional, modular and elegant system for heating all rooms. Thanks to their rounded shapes, which minimise the risk of accidents, they can also be used in public buildings, institutions, schools and hospitals. TESI 2 has a depth of 65 mm and various heights available. The insertion refers to the Tesi 2 model with height 1800 mm, standard white colour and standard 1/2″ side connections (code 02).
Irsap radiators on Grim Network
Other construction features:
- 25 mm diameter sheet steel tubes;
- pressed sheet steel manifolds;
- maximum permissible operating pressure 8 bar
- maximum permissible operating temperature 95°C;
- Irsap valve centre distance measurement 41÷44 mm;
- Irsap lockshield centre distance measurement equal to 41÷44 mm;
- upper and lower manifold end threads 1″1/4 G right or left.
Surcharges for other finishes:
– Classic: +15%.
– Special: +25%.
– Loft treatment: +40%.
– Other Ral colours (subject to feasibility): +40%.
