Name: IRSAP design radiator Tesi Runner series with height 1800mm
SKU: runner_h1800-en
Availability: InStock

IRSAP design radiator Tesi Runner series with height 1800mm

€600,00 – €710,00 VAT incl.

Construction characteristics

25 mm diameter sheet steel tubes
pressed sheet steel manifolds;
element pitch 45 mm;
upper and lower manifold end threads 1/2″ G dx;
maximum permissible operating pressure 8 bar
maximum permissible operating temperature 95°C;
Irsap valve centre distance measurement 41÷44 mm;
Irsap lockshield centre distance measurement equal to 41÷44 mm;
Tesi Runner H1800 net weight: 21.5kg (8el.); 26.9kg (10el.); 32.3kg (12el.).

Technical data sheet and *colour chart (for other colours please ask for availability)

*Other RAL colours: 25% surcharge upon feasibility.

Metodi di pagamento

IRSAP design radiator Tesi Runner series with height 1800mm on Grim Network

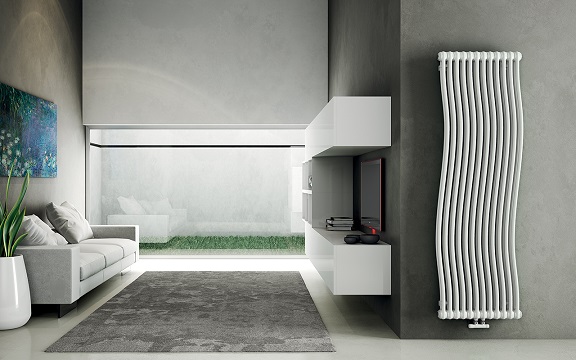

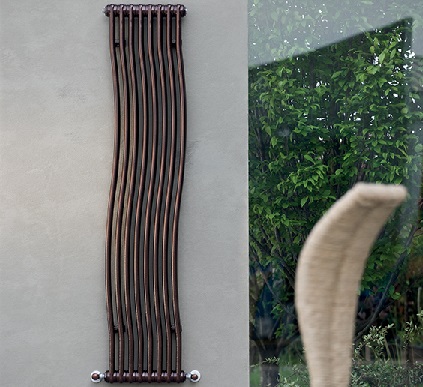

TESI RUNNER, sinuosity as a characteristic feature, dynamism as the absolute protagonist of any environment. Irsap design radiator also available in the 2000mm high version with 8 elements (1112 Watts), 10 elements (1390 Watts) and 12 elements (1668 Watts).

Irsap designer radiators on Grim Network

Standard equipment

wall mounting kit in matching finish to the radiator;
hydraulic connection kit (valve and lockshield) in finish matching the radiator;
chrome-plated air vent valve kit – pipe cover kit and wall hole cover (washers);
1/2″ blind plug complete with chrome-plated plug cover.

N.B.: The hydraulic connection kit, supplied with the radiator, includes the valve and lockshield in square version, both for separate valve and lockshield and for 50 mm pitch valve, complete with fittings for connection with copper pipes (12, 14 and 15 mm diameters) and multilayer pipes (14 sp. 2 and 16 sp. 2).
